NDP115
Neural Decision Processor

Always-on Speech & Sensor-Fusion Processor

The Syntiant® NDP115 Neural Decision Processor™ is a special purpose chip deep learning and is ideal for always-on applications in battery powered devices and other power constrained systems. The NDP115 applies neural processing to run multiple applications simultaneously with minimal power consumption. Built using the Syntiant Core 2™ programmable deep learning architecture, NDP115 is designed to natively run multiple Deep Neural Networks (DNN) on a variety of architectures, such as CNN, RNN and fully connected networks. NDP115 brings a level of ML performance that delivers 25x the tensor throughput compared to the Syntiant Core 1™ embedded in Syntiant’s NDP100 and NDP101 devices, and is able to run speech inferences at a mere 280 microwatts. A programmable HiFi 3 DSP is available for flexible feature extraction classical audio processing.

The NDP115 supports dozens of application-defined audio sequences for a variety of use cases including:

| Far-field, near-field and close-talk voice interface
| Multiple wake words and local commands
| Acoustic Echo Cancellation (AEC), noise suppression, beamforming
| Speech enhancement
| Speaker identification and verification
| Acoustic event and scene classification
| Multi-sensor fusion

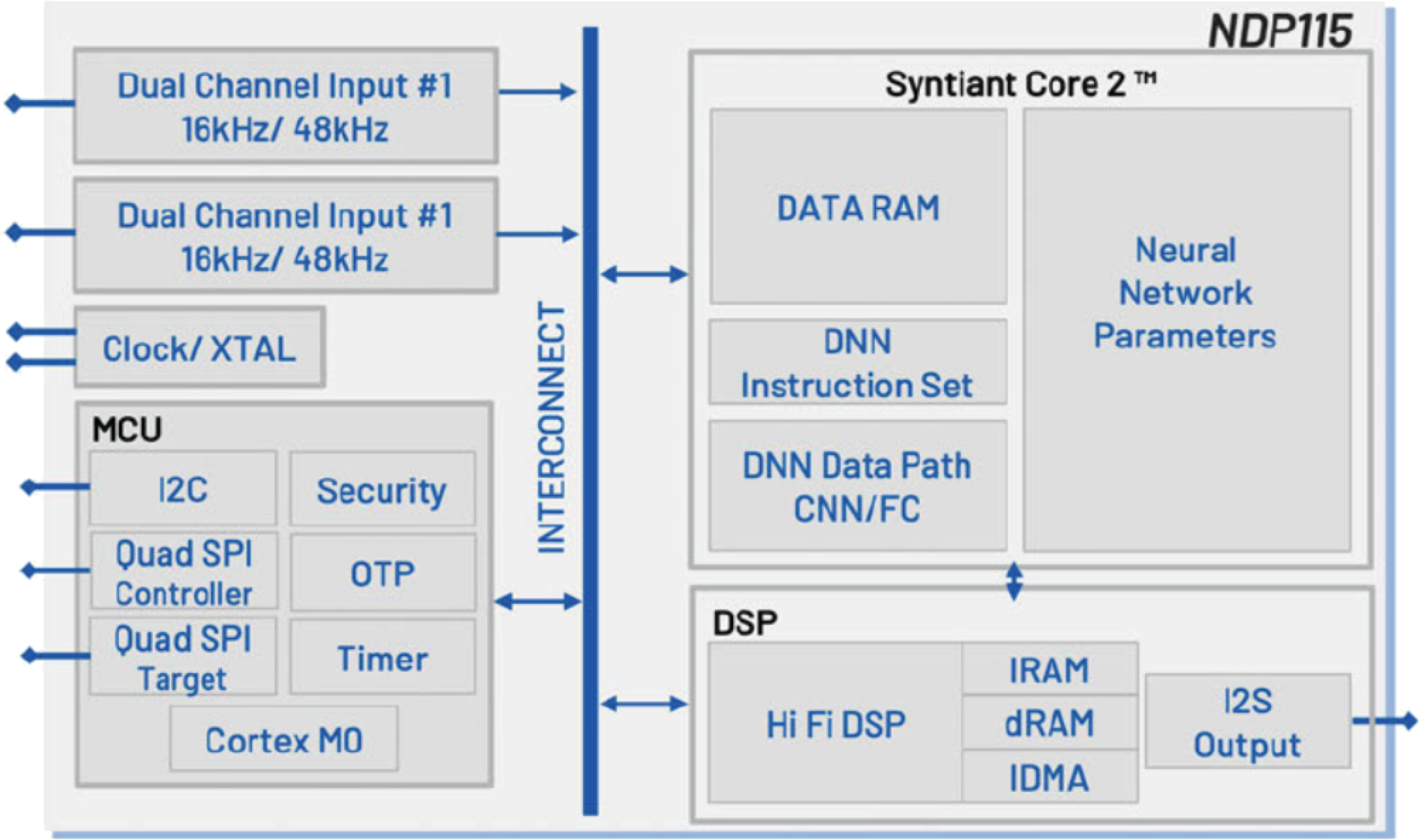

BLOCK DIAGRAM

KEY FEATURES & BENEFITS

| Syntiant Core 2TM neural processor

| Support for concurrent neural networks

| Embedded user programmable HiFi-3 DSP with 144KB 64 bit data RAM and 64KB 64 bit instruction RAM

| Deeply embedded Arm Cortex MO microcontroller for device management with 48KB SRAM, dual-timers, and UART functionality

| Direct input of PCM audio and support for up to 5 audio streams

| I2C controller and target modes for sensor control and integration

| Up to 13 GPIO pins

| Flexible clock generation

| Onboard firmware decryption and authentication

| 25-ball WLBGA package (0.4mm pitch)

APPLICATIONS

Earbuds & Hearing Aids
Mobile Phones
Smart
Home
Smart Watches
IOT Endpoints
Personal Computers
AR / VR HMDs
